We provide professional Carton Box Packaging Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

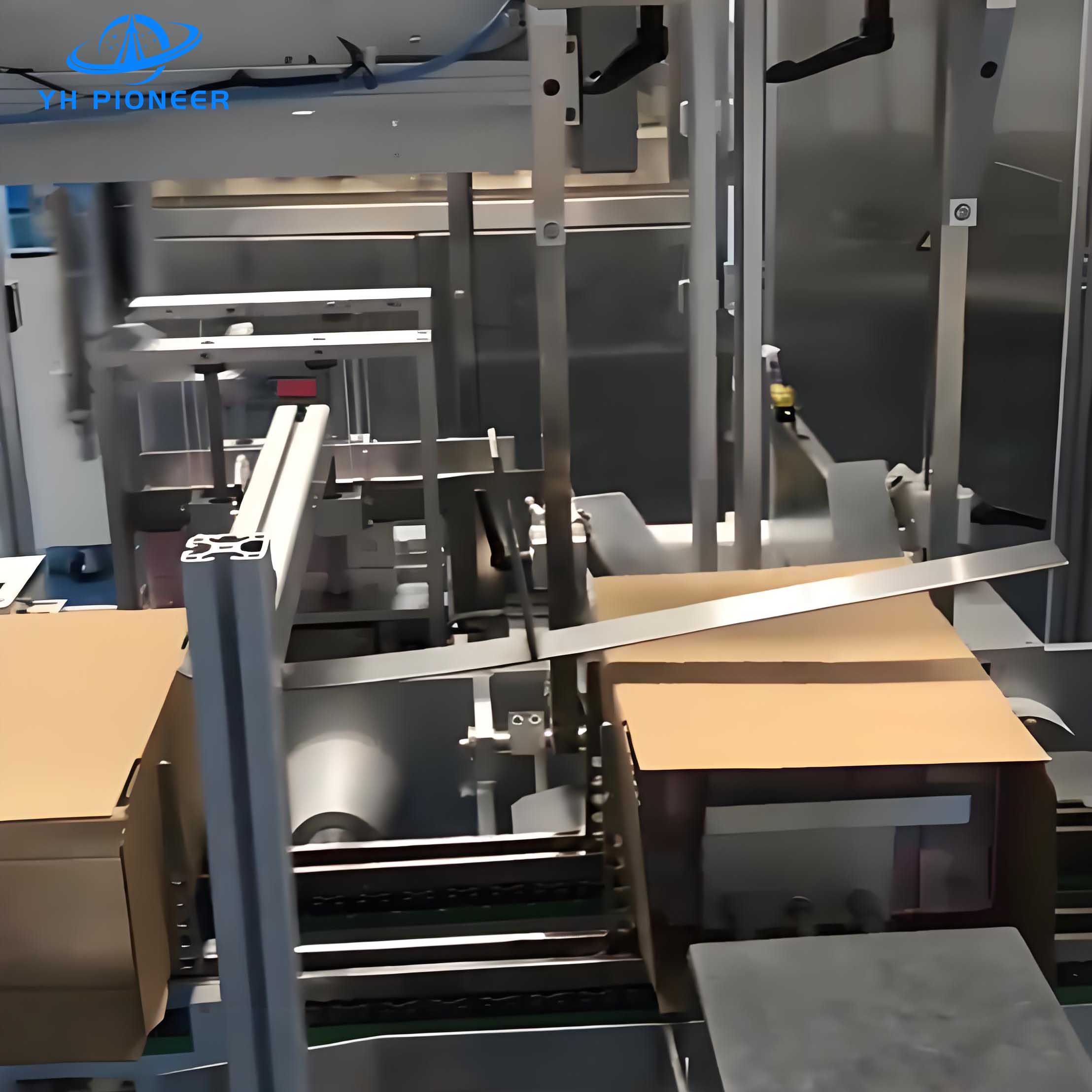

The Carton Box Packaging Machine is an integrated solution that combines case opening and box packing into one seamless operation. This innovative machine is designed with a compact structure and offers high precision in its functioning, making it ideal for various industries that require efficient and automated packaging of carton boxes. With its user-friendly interface and advanced control systems, the machine ensures smooth and error-free operation.
PRODUCT PARAMENTERS
| Box Size | Length 80-300mm, Width 80-200mm Height 10-90mm() |
| Case Size | Length 240-500mm, width 190-400mm, height 140-400mm |
| Box Stacking Speed | 200ppm |
| Case Filling Speed | 5-20cases/min |
| Power | 4.5KW |
| Compressed Air | 0.6-0.8Mpa, 0.43/min |
| Overall Size | 4200mm*2200mm*1850mm |
| Weight | 1200kg |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE
Integrated Design: Combines case opening and box packing for a streamlined workflow.
User-friendly Operation: Features a touchscreen display with PLC automatic control for ease of use.
High Precision: Equipped with a servo system for accurate positioning and stable motion.
Wide Applicability: Suitable for a variety of box types, enhancing flexibility in packaging operations.
Versatility: Ideal for integration with packaging lines and easy mobility for various production environments.
PRODUCT SPECIFICATIONS
Box Size: Capable of handling boxes with dimensions ranging from Length 80-300mm, Width 80-200mm, and Height 10-90mm.
Case Size: Designed to accommodate cases with Length 240-500mm, Width 190-400mm, and Height 140-400mm.
Box Stacking Speed: Operates at a speed of 200 boxes per minute for rapid stacking.
Case Filling Speed: Fills cases at a rate of 5-20 cases per minute, depending on the case size and complexity.
Power: Requires 4.5KW to support its high-performance operations.
Compressed Air: Operates with an air pressure of 0.6-0.8Mpa and a consumption rate of 0.43 cubic meters per minute.
Overall Size: The machine has dimensions of 4200mm in length, 2200mm in width, and 1850mm in height.
Weight: Weighs 1200kg, built for industrial reliability and stability.
PRODUCT MATERIALS
Machine Frame: Constructed with robust materials suitable for industrial use, ensuring durability and stability.
Control Systems: Incorporates high-quality electronic components for reliable operation and precise control.
PRODUCT APPLICATION
Food Industry: Perfect for the packaging of food products in carton boxes, ensuring hygiene and efficiency.
Pharmaceutical: Ideal for the precise packaging of pharmaceutical products, meeting strict industry standards.
Daily Chemicals: Suitable for the packaging of cosmetic and personal care products, providing a secure and attractive presentation.
General Packaging: Can be used across various industries where automated box packaging is required.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Carton Box Packaging Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
